Introduction
It is a pressure processing method and uses cold plastic characteristics of metal under room temperature to impose certain pressure on part surface by means of rolling cutter. Part surface metal will have plastic flow to fill in the remaining concave trough, so that part surface roughness will be reduced. As surface metal produces plastic deformation, surface structure will be hardened with fine grain to form dense fiber and residual stress layer, so that hardness and strength can be increased to improve wear resistance, corrosion resistance and matching property of the surface. As rolling is a plastic processing method without cutting, it can achieve smooth processing and strength, which can be done by grinding or turning.

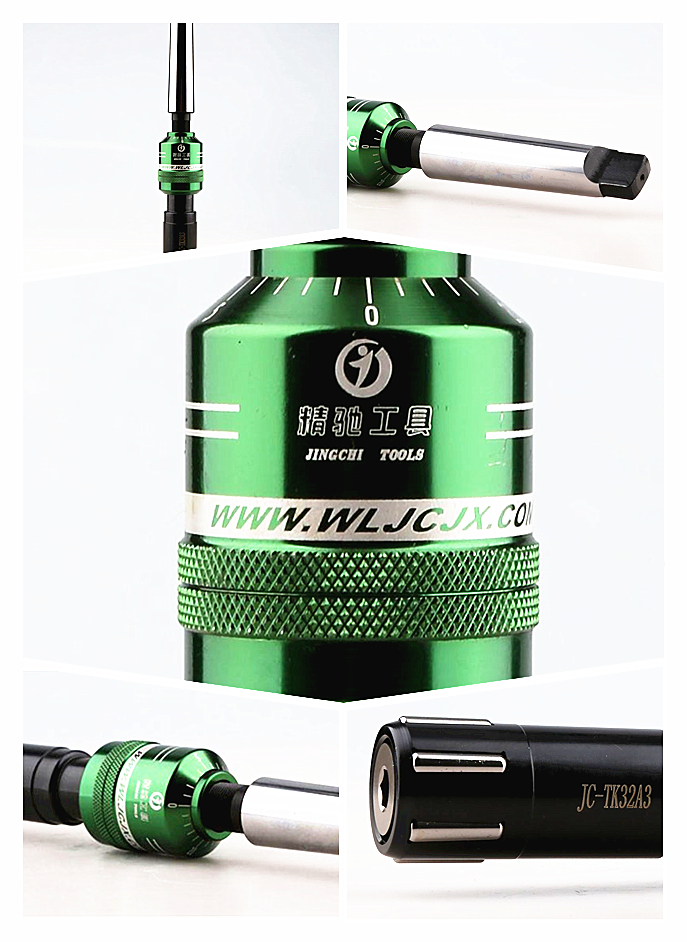

Product display
Inner hole is processed by mirror rolling tool for through hole. Standard specifications of processed hole diameter is Φ4-200mm, but non-standard custom size is also accepted.

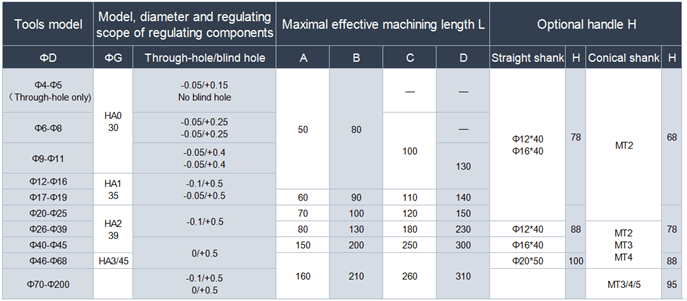

Optional parameters

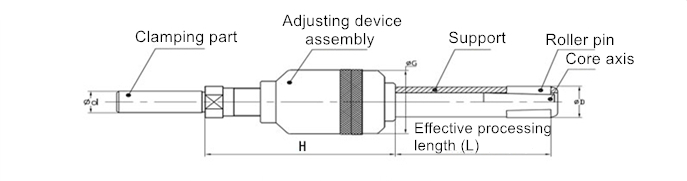

Note: Effective processing length of rolling cutter with hole diameter ofΦ26-68 has standard MT3 handle from
grade B. Customization is accepted if other specifications are required. With respect to rolling cutter with hole
diameter overΦ40, as outer diameter of adjusting component is smaller than processed hole diameter, it is po
-ssible to increase processing length by increasing the size of handle.
Product display
