JC-TK Through Hole Roller Burnishing Tool

Roller Burnishng Tool Introduction


Roller burnishing tool can use the plastic deformation of metal at normal temperature to make the surface of workpiece smooth,change the surface structure, mechanical properties, shape and size. Elephants. The tool is a kind of mechanical non-cutting plastic machining method which uses the principle of mechanical extrusion to obtain a smooth mirror-like metal surface.
      It is a kind of pressure finishing, which use the cold plastic characteristics of metal in the normal temperature state, and exerts certain pressure on the surface of the workpiece by roller burnishing tool, so that the surface metal of the workpiece produces plastic flow, fills in the original residual low-pit trough, and reduces the roughness of the workpiece surface. Due to the plastic deformation of the rolled surface metal, the surface microstructure is cold hardened and the grain becomes fine, forming a compact fibrous structure, and forming a residual stress layer. The hardness and strength are improved, thus improving the wear resistance, corrosion resistance and compatibility of the workpiece surface. Roller burnishing is a kind of non-cutting plastic processing method, so this method can achieve both finishing and strengthening purposes, which can not be achieved by grinding and turning.

Product Data

Blind hole roller burnishing tool,it can burnish the throught hole and blind hole products.Hole  diameter 8-200mm is the standard specification.,acceptance of non-standard customization.

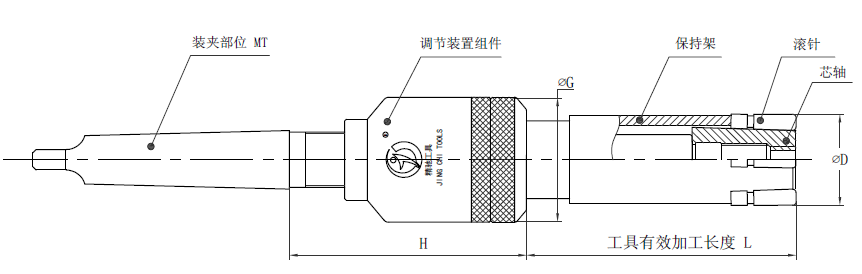

Model Regulating component, Diameter and adjustment range Effective Length/L Shank/H
ΦD ΦG Through hole/ Blind hole A B C D Round shank H Taper shank H
Φ4.5-Φ5
No blind hole
HA0
30
-0.05/+0.15
No blind hole
50 80 _ _ Φ12*40

Φ16*40

78 MT2

 68
Φ6-Φ8 -0.05/+0.25
-0.05/+0.25
100 _
Φ9-Φ11 -0.05/+0.4
-0.05/+0.4
130
Φ12-Φ16 HA1
35
-0.1/+0.5
-0.05/+0.5
Φ17-Φ19 60 90 110 140
Φ20-Φ25 HA2
39
-0.1/+0.5 70 100 120 150 88  78
Φ26-Φ39 80 130 180 230 Φ12*40
Φ16*40
Φ20*50
MT2
MT3
MT4
Φ40-Φ45 0/+0.5 150 200 250 300
Φ46-Φ68 HA3/45 160 210 260 310 100  88
Φ70-Φ200 -0.1/+0.5
0/+0.5
_ _ MT3/4/5  95

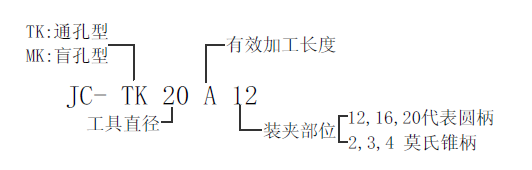

工具型號表示方法

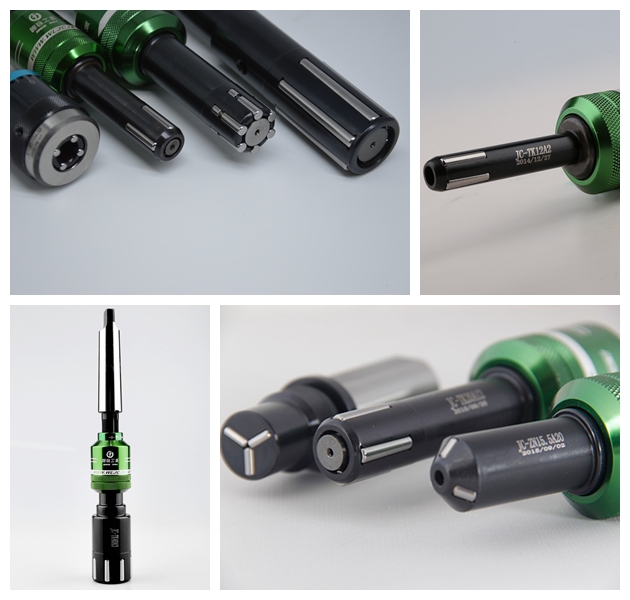

    Product Display
